Q & A
Q:What’s the default ip address of the camera ?
A:192.168.1.88 Username : admin Password : admin
Q:What’s the Password of AP Function ?
A:Password : 01234567
Q:What’s the SD Card Size?
A:Micro SD Card(TF Card) 15mm*11mm*1mm
Q:What’s the WiFi standard?
A:802.11b/g/n ,only support 2.4G.
Focus on high image quality.
GC-W50AT 5mp with SONY IMX335 CMOS.
If you want to customize the camera with SONY sensor SONY323、SONY291 , MOQ(Min order quantity ) is 20 pcs, please feel free to contact us if you need any other help.
New H.265 Compression Technique
Lower Bandwidth/Less Storage Space/Better Image Quality
Simple and convenient app for Android and iOS devices.

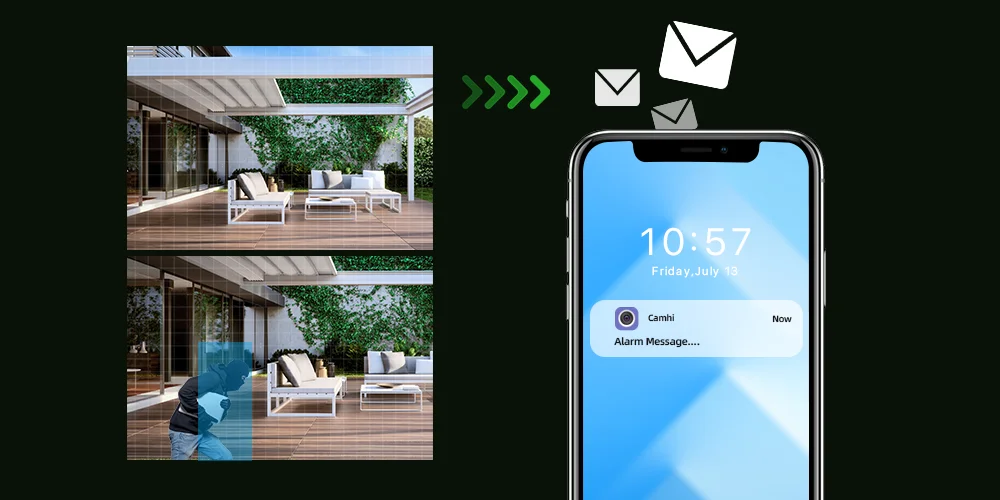

Motion Detection with Alarm push
Push the alarms to cellphone APP Camhi once there is the moving subject.

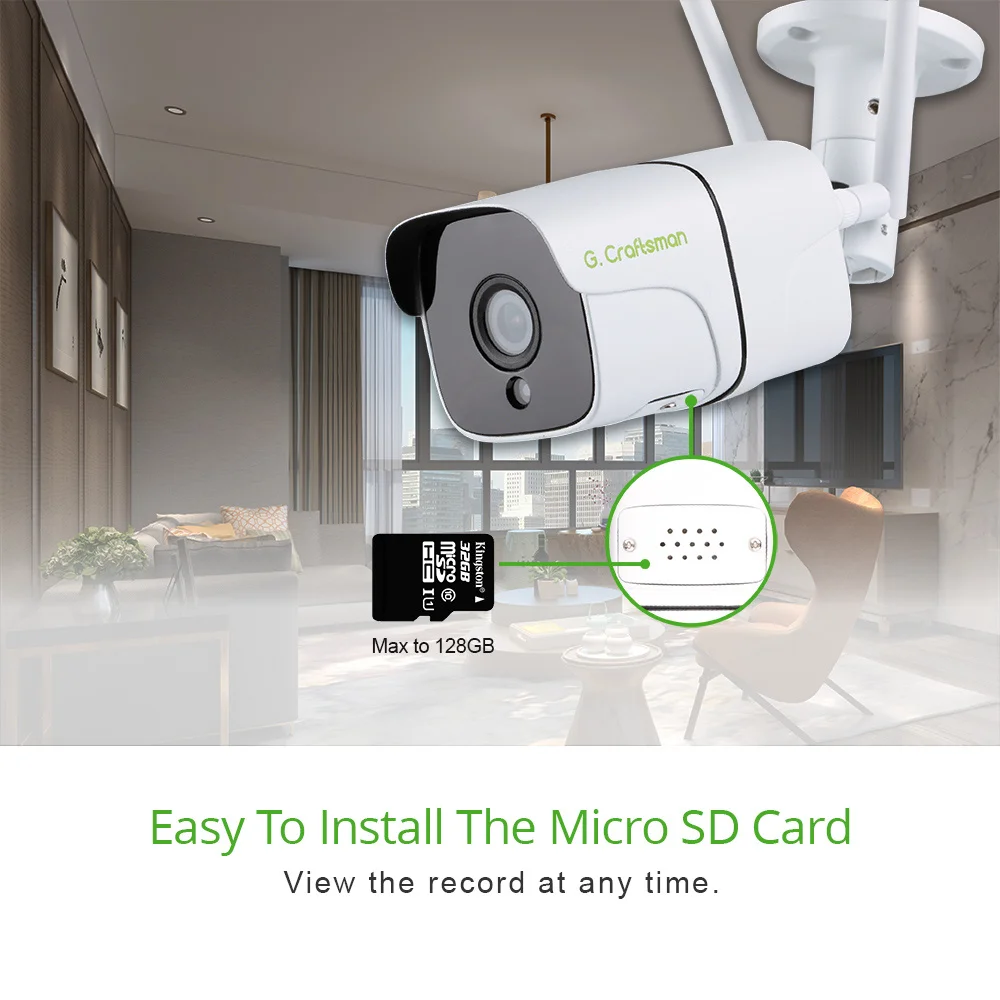

Support Micro SD Card
Generally speaking, 8GB/Day for continuous recording; 5GB/Day or less for motion detection recording.

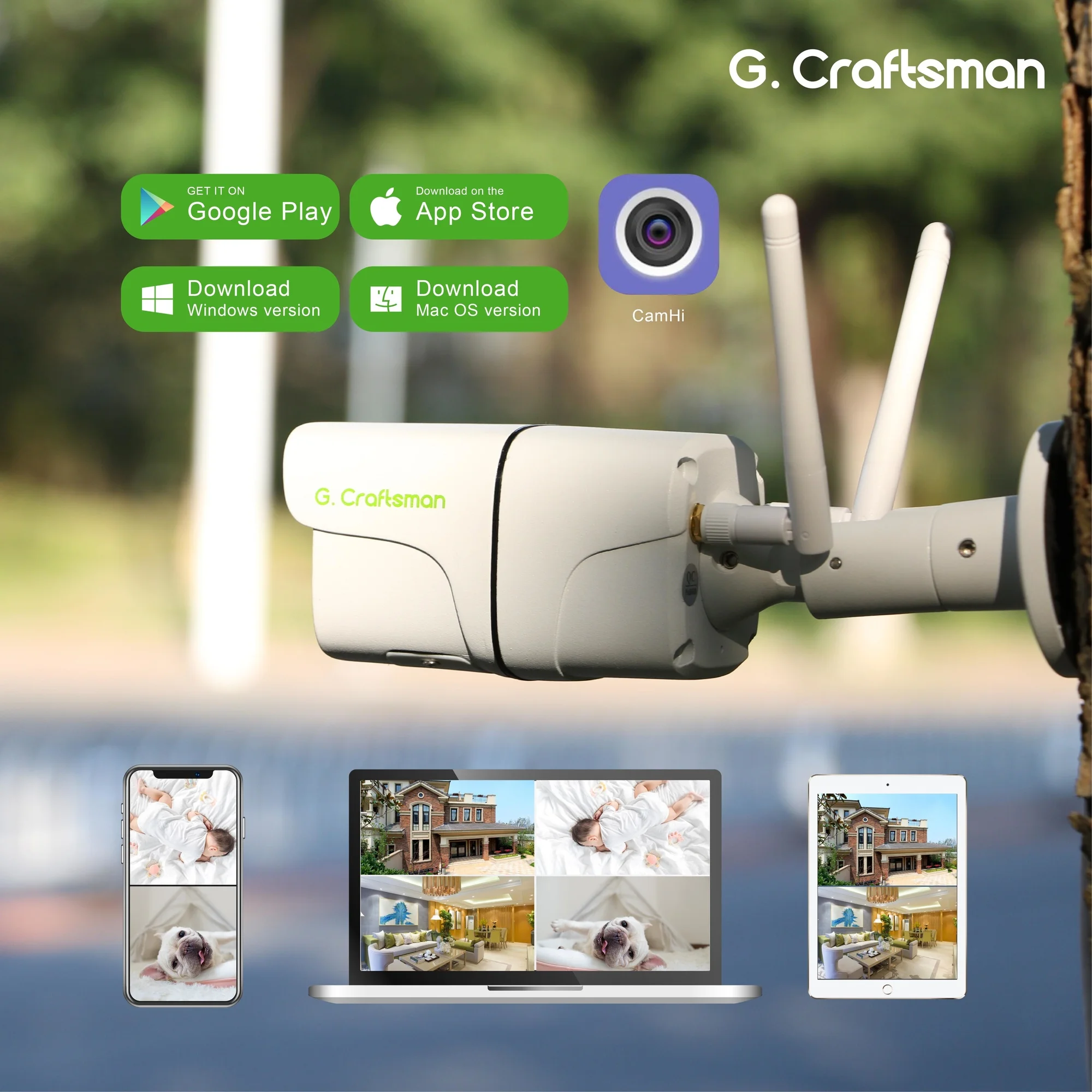

Remote Viewing, Anytime, Anywhere
No matter where you are, you can remotely access the security camera to see live streaming and stay connected.
Image Sensor: 1/2.8″ IMX335 CMOS
Video Resolution: 5MP(2560*1920)
First stream:2560×1920 or 2560×1440
Frame Rate: 15fps(PAL), 15fps(NTSC)
Lens: 3.6mm View angle:85°
LEDs:36pcs LED IR Distance:30m
Min. Lux：0.01Lux （0Lux LED on）
Power Consumption: 12V1A
Video Compression：32Kbits/s ~ 6Mbits/s
Audio Codec: Audio Codec
Interface: RJ45, DC Power
Network Protocol:TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP
Access Protocol: ONVIF2.4
Motion detection: 4 respective regions at most
Alarm linkage: Send alarm pictures by E-mail , upload picture and video to FTP server
Snapshot: Supports regularly capturing images to FTP server
Package Dimensions: 20*10*10(cm)
